Posts Tagged ‘upgrade’

DB Upgrade Failed! :( – Have to start it from the scratch, Really ??

Posted by FatDBA on December 4, 2017

Hi Mates,

Lets recall the list of per-requisites that we have to perform before doing a database upgrade!
Few of them i quickly recall are – Full RMAN Backup, Creating Guaranteed Restore points etc.

But are these options allows us to resume any failed upgrade activity ? — NO

Let’s go back to time before Oracle 12c (Ex: 10g, 11g etc.)

Resuming of failed upgrade was not possible and you have to recall the catupgrd.sql and open the database in UPGRADE mode but this will only start it from the beginning and won’t resume from the point it got failed last time. So same amount of time we be consumed once again for the upgrade

SQL> startup upgrade
SQL> spool /home/dixit/upgradedir/catupgrdscriptout.log
SQL> @?/rdbms/admin/catupgrd.sql

Now lets discuss about 12c, starting from 12c Release 1 we have the all new parallel upgrade utility (catctl.pl). For this you still have to open your database in UPGRADE mode and will be controlled by this new perl script.
If talk about restarting of failed upgrade, here we’ve got a small relief as you will be able to restart the upgrade from the phase where it was crashed/stopped using -P option.

Example:

Serial Phase #:56 [UPGR] Files:1 Time: 3s
******************* Migration ******************
Restart Phase #:57 Files: 1 Time: 0s
Serial Phase #:58 Files: 1 Time: 102s
Restart Phase #:59 Files: 1 Time: 1s
Serial Phase #:60 Files: 1 Time: 221s
Restart Phase #:61 Files: 1 Time: 0s
Serial Phase #:62 Files: 1 Time: 25s
Restart Phase #:63 Files: 1 Time: 0s
Serial Phase #:64 Files: 1 Time: 2s
Serial Phase #:65 Files: 1 Calling sqlpatch with LD_LIBRARY_PATH=/u01/app/oracle/product/12.1.0/db_1/lib; export LD_LIBRARY_PATH;/u01/app/oracle/product/12.1.0/db_1/perl/bin/perl -I /u01/app/oracle/product/12.1.0/db_1/rdbms/admin -I /u01/app/oracle/product/12.1.0/db_1/rdbms/admin/../../sqlpatch /u01/app/oracle/product/12.1.0/db_1/rdbms/admin/../../sqlpatch/sqlpatch.pl -verbose -upgrade_mode_only > catupgrd_datapatch_upgrade.log 2> catupgrd_datapatch_upgrade.err FAILED

As we see the upgrade failed at phase number 65, so we can restart the upgrade mentioning the phase number (-P) to resume it from that phase and upgrade process won’t repeat steps happened successfully.

$ORACLE_HOME/perl/bin/perl catctl.pl -p 65 -l /home/dixit/upgradedir/catupgrd.sql

******************* Migration ******************
Serial Phase #:65 Files: 1 Time: 28s
Serial Phase #:66 Files: 1 Time: 3921s
Serial Phase #:68 Files: 1 Time: 0s
Serial Phase #:69 Files: 1 Time: 57s
Serial Phase #:70 Files: 1 Time: 1027s
Serial Phase #:71 Files: 1 Time: 3s
Serial Phase #:72 Files: 1 Time: 0s
Serial Phase #:73 Files: 1 Time: 18s
Grand Total Time: 6459s
LOG FILES: (catupgrd*.log)
Upgrade Summary Report Located in:
/u01/app/oracle/product/12.1.0/db_1/cfgtoollogs/JANI/upgrade/upg_summary.log
Grand Total Upgrade Time: [0d:0h:40m:39s]

Now, lets discuss the main objective of writing this new blog entry.
Starting from Oracle 12c Release 2 we have got more control over upgrade activities as with this latest release you will be able to resume the upgrade from where it got stopped last time. Oracle introduced a new flag -R with catctl.pl to achieve this, so don’t worry about the upgrade phases 🙂

$ORACLE_HOME/perl/bin/perl catctl.pl -R -l /home/dixit/upgradedir/catupgrd.sql

Hope It Helps
Prashant Dixit

Advertisements

Posted in Advanced | Tagged: , , | Leave a Comment »

Database Upgrade (Oracle 10R2 or 11.2.0.1 to Oracle 11gR2(11.2.0.2/3)

Posted by FatDBA on April 19, 2013

Describing pre/post checklist and upgrade process details for upgrading a Oracle 10R2 or 11.2.0.1 to Oracle 11gR2(11.2.0.2/3)

Please check OS version as upgrade is only certified for RH 5.

cat /etc/red*
Red Hat Enterprise Linux Server release 5.4 (Tikanga)

**For 11.2.0.2.3, ensure RHEL is upgraded to 5.5 and above.

$ cat /etc/redhat-release
Red Hat Enterprise Linux Server release 5.5 (Tikanga)

**For 11.2.0.2.3, ensure ASM is upgraded to 11.2.0.3.  (Check dir $ORA_CRS_HOME then cd ..  then pwd)

Please ensure that 11.2.0.3.x86_64 is pushed on the box and tnsnames.ora and listener.ora are updated accordingly.

Verify all ET standards
* Index Placement
* DB User profile assignment
Need to install Oracle 11g using runinstaller.

Phase 1: PRE UPGRADE TASKS
Phase 2: UPGRADING THE DATABASE TO ORACLE 11G R2
Phase 3: POST UPGRADE TASKS.

Phase 1 : Pre upgrade tasks

Step 1 : Create the directory
mkdir  preupgrade_bkup

Step 2 : Disable all the below jobs :
– All batch and cron jobs.
– Backup
– Archive removal and rotation
– Application jobs
– Stats collection job
– standby job at standby server and make sure all arch has been applied at DR/STANDBY server side.
Step 3 : Run the gather stats job

a) Gathering System Stats
exec dbms_stats.gather_schema_stats(‘SYS’);

b) Gathering Dictionary Stats
exec dbms_stats.gather_dictionary_stats;

c) Gathering all fixed objects stats (dynamic performance tables)
exec dbms_stats.gather_fixed_objects_stats;

d) Gathering Database Stats
exec dbms_stats.gather_database_stats(options => ‘GATHER AUTO’);

e) Run the stats for all the Application schemas :
exec DBMS_STATS.GATHER_SCHEMA_STATS(OWNNAME=>’OWNER’, ESTIMATE_PERCENT=>DBMS_STATS.AUTO_SAMPLE_SIZE, DEGREE=>DBMS_STATS.AUTO_DEGREE, CASCADE=>TRUE, OPTIONS=>’GATHER STALE’);

exec  DBMS_STATS.GATHER_SCHEMA_STATS(OWNNAME=>’OWNER’, ESTIMATE_PERCENT=>DBMS_STATS.AUTO_SAMPLE_SIZE, DEGREE=>DBMS_STATS.AUTO_DEGREE, CASCADE=>TRUE);

Step 4 : Capture Database link information :

spool create_dblink.info

SELECT
‘create ‘||DECODE(U.NAME,’PUBLIC’,’public ‘)||’database link ‘||CHR(10)
||DECODE(U.NAME,’PUBLIC’,Null, U.NAME||’.’)|| L.NAME||chr(10)
||’connect to ‘ || L.USERID || ‘ identified by
||L.PASSWORD|| using  || L.host || ‘
||chr(10)||’;’ TEXT

FROM sys.link$ L, sys.user$ U WHERE L.OWNER# = U.USER# ;

spool off

Step 5 : Create Pre-Upgrade BackupSET.
Run the database backup, be it RMAN (full not incremental) or hot backup whatever is configured in the environment.
Step 6: Verify Disk free space for archive mount point, we should have 15-20 gigs of space for arch (command to verify the space : df –h .)
Step 7 : Ensure no files need media recovery:

SQL>  select * from v$recover_file;
no rows selected

*** Make sure currently no backup is running for the database, if yes then end backup using command.

SQL > Alter database end backup;
Database altered.

Step 7 : Verify DB version and installed options :

Ensure the properties for SYSTEM ,SYS user and database component status should be valid and default tablespace should be SYSTEM and SYSAUX respectively.

SQL> select username, default_tablespace from dba_users where username in (‘SYS’,’SYSTEM’);

=============================================================================================
SYS                            SYSTEM
SYSTEM                         SYSTEM

2 rows selected.

Database Components Information
select COMP_NAME, VERSION, status from dba_registry;

Database Patches Information
select ACTION_TIME, NAMESPACE, VERSION, COMMENTS, BUNDLE_SERIES from sys.registry$history Order by ACTION_TIME;

Database DST Information

col VERSION for 999
SELECT * FROM v$timezone_file;

Step 8: Purge the recyclebin :
PURGE DBA_RECYCLEBIN;

Step 9: Recompile invalid objects:
SQL>@?/rdbms/admin/utlrp.sql
Step 10 : Spool file before running upgrade tool :

SQL> spool pre_upgrade_database_details.log
SQL> @? /rdbms/admin/utlu112i.sql
SQL> spool off

Step 10: Stop the agent and listener :

emctl stop agent
lsnrctl stop <listener-name>

Step 11: Bring down the DB :
SQL>shutdown immediate;

Keeping in mind if the DB is an RAC change the CLUSTER_DATABASE=false
SQL> alter system set cluster_database = false scope = spfile;

Phase 2: Upgrading to Oracle Database 11g Release 2

[oracle]$ export ORACLE_HOME=/u01/app/oracle/oracle/product/product/11.1.0/db_1
[oracle]$ export PATH=$ORACLE_HOME/bin:$PATH
[oracle]$ export ORACLE_SID=orcl
[oracle]$ export TNS_ADMIN=$ORACLE_HOME/network/admin

connected to the database sys as sysdba
sqlplus “/ as sysdba” –> will be connected to idle instance

Step 1 : Create pfile (change compatible to 11.2.0.3) and start the instance using new pfile :
SQL > startup nomount;

Step 2: Create passwordfile
orapwd file=${ORACLE_HOME}/dbs/orapw${ORACLE_SID} password={password} entries =80 force=y

Step 3 :  Upgrade the DB, upgrd.sql will take around 30 minutes to complete
SQL> spool $ET_INSTANCE_ROOT/bkup/upgrade/upgrade_to_11203.log
SQL> startup upgrade
SQL> @?/rdbms/admin/catupgrd.sql

SQL> startup

*** Can check the spool file for any errors …

Phase III: Post-Install Oracle Database 11gR2

Step 1: Verify Upgrade Status:

SQL> @?/rdbms/admin/utlu112s.sql .

Oracle Database 11.2 Post-Upgrade Status Tool 01-28-2011 10:45:32 .
Component Status Version HH:MM:SS .
Oracle Server . VALID 11.2.0.3.0 00:10:43
Gathering Statistics . 00:00:40 Total Upgrade Time: 00:12:03

PL/SQL procedure successfully completed.

Steps 2: Need to verify the components after the upgrade :

SQL >select COMP_NAME, VERSION, status from dba_registry;
SQL>select ACTION_TIME, NAMESPACE, VERSION, COMMENTS, BUNDLE_SERIES from sys.registry$history Order by ACTION_TIME;
SQL>SELECT * FROM v$timezone_file;

Step 3: Need to upgrade the timezone to 14

SQL>conn / as sysdba
SQL>shutdown immediate;
SQL>startup upgrade;

SQL> purge dba_recyclebin;
DBA Recyclebin purged.

SQL> TRUNCATE TABLE SYS.DST$TRIGGER_TABLE;
TRUNCATE TABLE sys.dst$affected_tables;
TRUNCATE TABLE sys.dst$error_table;

SQL> EXEC DBMS_DST.BEGIN_UPGRADE(11);
An upgrade window has been successfully started.

PL/SQL procedure successfully completed.

SQL> col value format a10
SQL> SELECT PROPERTY_NAME, SUBSTR(property_value, 1, 30) value  FROM DATABASE_PROPERTIES WHERE PROPERTY_NAME LIKE ‘DST_%’  ORDER BY PROPERTY_NAME;

PROPERTY_NAME                  VALUE
—————————— ———-
DST_PRIMARY_TT_VERSION         11
DST_SECONDARY_TT_VERSION       7
DST_UPGRADE_STATE              Upgrade

3 rows selected.

SQL> SELECT OWNER, TABLE_NAME, UPGRADE_IN_PROGRESS FROM ALL_TSTZ_TABLES where    UPGRADE_IN_PROGRESS=’YES’;
no rows selected

SQL> EXEC DBMS_DST.BEGIN_UPGRADE(14);
An upgrade window has been successfully started.
SQL> SELECT PROPERTY_NAME, SUBSTR(property_value, 1, 30) value FROM DATABASE_PROPERTIES WHERE PROPERTY_NAME LIKE ‘DST_%’ ORDER BY PROPERTY_NAME;
PROPERTY_NAME VALUE —————————— ———- DST_PRIMARY_TT_VERSION 14 DST_SECONDARY_TT_VERSION 0 DST_UPGRADE_STATE NONE 3 rows selected.

SQL> select * from v$timezone_file;

FILENAME                VERSION
——————– ———-
timezlrg_14.dat              14

Step 4: Verify invalid objects and compile them :
SQL>@?/rdbms/admin/utlrp.sql

Step 4: Start the database, agent, listner cleanly:

SQL> shutdown immediate
SQL> startup mount
SQL> alter system set cluster_database=TRUE scope=spfile; <— Only required for RAC

SQL> startup (If RAC, do it on both nodes)
lsnrctl start <listener-name>

Step 5: Run the gather statistics job again :
Step 6: Enable all the jobs which we commented before upgrade activity
Step 7 : Verify the database parameters.

Posted in Advanced | Tagged: , | Leave a Comment »

Database Migration vs Upgrade ?

Posted by FatDBA on February 25, 2013

While talking with one of the new DBA found him uncomfortable & perplexed when started discussing Database Migration and Upgrade activities. Well i’ve seen that there are so many confusions revolves in any DBA’s mind who is very new to the Administration.

Alright, so today i would like to distinguish between the two activities which could be easily considered as one of the major activity of any DBA.

Okay.

Terms like Migration and Upgrade are used to convert an existing database to a new software release. One of the major difference that i’ve discovered is,

In case of Upgrade, you shut down the database, start it up with the new software release, and then execute provided SQL and PL/SQL scripts to update Oracle’s internal dictionary tables and other objects. Oracle also provides ‘downgrade’ scripts which can be run to revert back all changes that happened to the database during the Upgrade process.
In broader terms Upgrade is a new release for existing system.

Example: DB Version change from Oracle 7.3.3 to Oracle 7.4.4 is an Upgrade example. e.g. 8.1.6->8.1.7 or 8.1.7.0->8.1.7.4.

Migration:
In some cases Migration may describe the process of moving data from a non-Oracle database into an Oracle database. A Migration is generally displacing a database from —

* From one destionation/location to new one.
* One RDBMS to another (Hetrogenous), example: Sybase to Oracle.
* One major release to another (Homogenous), example: Oracle 9i to Oracle 10g.
Example: Going from Oracle 9i to Oracle 10g is a Migration example. e.g. 7->8, 8->9.

Posted in Advanced | Tagged: , | 1 Comment »

Database Version Details

Posted by FatDBA on July 14, 2012

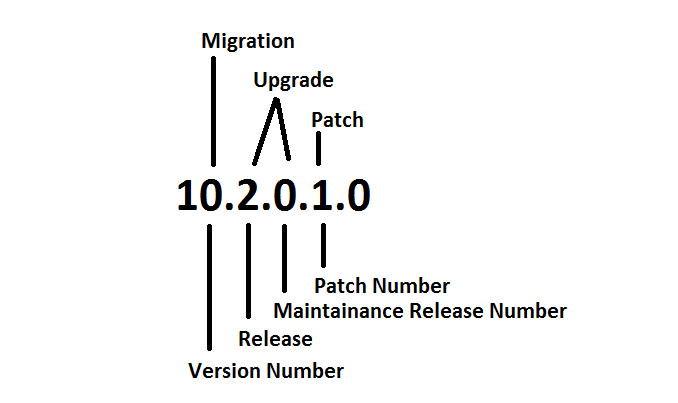

Below provided image is descriptive enough to explain the details of a Database Version.

Notes: Texts on the top of the number defined the name of the process/activity and below are the standard names. Last number in the range is shands for “Platform Specific Release Number” eg. the last zero out of 10.2.0.1.0

Posted in Basics | Tagged: , | 2 Comments »

‘ORA-12547: TNS:lost contact’ after OPATCH_PLATFORM_ID Reset in sqlplus.

Posted by FatDBA on July 5, 2012

Resolution:

1. De-install the deployed patch first  —

[oracle@prashant 8974084]$ opatch rollback -id 8974084   (Click Y/Yes when it asked you to select out of Yes/No).

Once the patch uninstalled unset the OPATCH_PLATFORM_ID

example:     [oracle@prashant 8974084]$ unset OPATCH_PLATFORM_ID

2. Stop all middle wares included e.g. ENTERPRISE MANAGER, LISTENER and shutdown the database.

3. Revert back the PLATFORM_ID back to it’s old value —

[oracle@prashant 8974084]$ export OPATCH_PLATFORM_ID=46   (46 was the old value of the machine)

4. Recheck all Network files located in $ORACLE_HOME/dbs     like listener.ora, tnsnames.ora and tnsnames.ora they might corrupted as well. Make sure you have the correct Host Name, Post Number, Service number defined in  tnsnames.ora. Check sqlnet,ora and verify if it has the EZCONNECT , TNSNAMES.

5. reboot your machine.

6.  Start listener and to give the database a try to start. Most probably  chances are there that you’ll receive LOCAL_LISTENER definition failure message during the start.

In that case you have to check your parameter file and perform requisite changes to the local listener definitions (*.LOCAL_LISTENER=’ ‘)

7. Re try to start the database and you’ll be able to start DB this time.

Feedbacks: If failed to start the DB box even after performing these steps and that will also motivate me to write about and research  🙂

Posted in Advanced | Tagged: , , | 1 Comment »

OraDose… (05-07-2012)

Posted by FatDBA on July 5, 2012

If getting error regarding Platform ID during prerequisite checks when applying any patch on database.

Below is the error code:

[oracle@prashant 8974084]$ opatch apply
Invoking OPatch 11.1.0.6.6

Oracle Interim Patch Installer version 11.1.0.6.6
Copyright (c) 2009, Oracle Corporation.  All rights reserved.

Oracle Home       : /u01/app/oracle/product/11.2.0/db_1
Central Inventory : /u01/app/oraInventory
from           : /etc/oraInst.loc
OPatch version    : 11.1.0.6.6
OUI version       : 11.2.0.1.0
OUI location      : /u01/app/oracle/product/11.2.0/db_1/oui
Log file location : /u01/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/opatch2012-07-05_12-07-37PM.log

Patch history file: /u01/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/opatch_history.txt

ApplySession applying interim patch ‘8974084’ to OH ‘/u01/app/oracle/product/11.2.0/db_1’

Running prerequisite checks…
Prerequisite check “CheckPatchApplicableOnCurrentPlatform” failed.
The details are:
Patch ( 8974084 ) is not applicable on current platform.
Platform ID needed is : 46
Platform IDs supported by patch are: 226
ApplySession failed during prerequisite checks: Prerequisite check “CheckPatchApplicableOnCurrentPlatform” failed.
System intact, OPatch will not attempt to restore the system

OPatch failed with error code 74

Resolution:

Reset Platform ID using OPATCH_PLATFORM_ID to desired ID.

(Note: Changing Platform ID sometimes affects machines networks and you might loose connections – TNS Error – No Connection

Please perform said steps on your own risk)

example: [oracle@prashant 8974084]$ export OPATCH_PLATFORM_ID=226

Let’s re-run the patch after we are done with the ID resets —

[oracle@prashant 8974084]$ opatch apply
Invoking OPatch 11.1.0.6.6

Oracle Interim Patch Installer version 11.1.0.6.6
Copyright (c) 2009, Oracle Corporation.  All rights reserved.

Oracle Home       : /u01/app/oracle/product/11.2.0/db_1
Central Inventory : /u01/app/oraInventory
from           : /etc/oraInst.loc
OPatch version    : 11.1.0.6.6
OUI version       : 11.2.0.1.0
OUI location      : /u01/app/oracle/product/11.2.0/db_1/oui
Log file location : /u01/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/opatch2012-07-05_12-19-49PM.log

Patch history file: /u01/app/oracle/product/11.2.0/db_1/cfgtoollogs/opatch/opatch_history.txt

ApplySession applying interim patch ‘8974084’ to OH ‘/u01/app/oracle/product/11.2.0/db_1’

Running prerequisite checks…

Using user-defined value, OPatch will treat this system as platform ID ‘226’.

OPatch detected non-cluster Oracle Home from the inventory and will patch the local system only.

Please shutdown Oracle instances running out of this ORACLE_HOME on the local system.
(Oracle Home = ‘/u01/app/oracle/product/11.2.0/db_1’)

Is the local system ready for patching? [y|n]
y
User Responded with: Y
Backing up files and inventory (not for auto-rollback) for the Oracle Home
Backing up files affected by the patch ‘8974084’ for restore. This might take a while…
Backing up files affected by the patch ‘8974084’ for rollback. This might take a while…

Patching component oracle.rdbms, 11.2.0.1.0…
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcb.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcbb.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcbo.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcbs.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcbz.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcl.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcbi.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kcbr.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kjb.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kjbl.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kjbm.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kjbr.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kjfc.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kmgs.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/kmgsb.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libserver11.a”  with “lib/libserver11.a/ksu.o”
Updating archive file “/u01/app/oracle/product/11.2.0/db_1/lib/libgeneric11.a”  with “lib/libgeneric11.a/skgvm.o”
Running make for target ioracle
ApplySession adding interim patch ‘8974084’ to inventory

Verifying the update…
Inventory check OK: Patch ID 8974084 is registered in Oracle Home inventory with proper meta-data.
Files check OK: Files from Patch ID 8974084 are present in Oracle Home.

The local system has been patched and can be restarted.

OPatch succeeded.

—— WE ARE DONE ——

Posted in Advanced | Tagged: , , | Leave a Comment »


%d bloggers like this:
